Simplex Three Phase Pump Control Panel For Waste Water Tank Sewage Sink
| Product Details: Place of Origin:China Brand Name:LEADING Certification:CE Model Number:S531 Payment & Shipping Terms: Minimum Order Quantity:1 set Price:Negotiable PackagingDetails:Package Payment Terms:L/C, D/A, D/P, T/T |
Detailed Product Description
Phase: | Three Phase | Pump Controlled Quantity: | One Pump |
Enclosure Protection Grade: | IP22 | Install Position: | Wall Mounting |
Displaying: | LCD Display | Trip Voltage Of Over Voltage: | 437V |
Trip Voltage Of Under Voltage: | 301V |
Intelligent Three Phase Water Pump Controller - Auto
Products Info
Model S531 is useful in all cases we need to control and protect single pump managing its turn-on and turn off by different electric installations.
Typical Usage ScenariosInclude:
Houses
Flats
Holidays houses
Farms
Water supply from wells
Irrigations of greenhouses, gardens, agriculture
Rain water reuse
Industrial plants
Waste water tank / Sewage sink
Model | S531 |
Start type | Direct on line |
Qty of controlled pump | Single pump |
Rated input voltage: | AC380V Three phase 50HZ/ 60HZ |
Rated output power: | 0.75kw-4kw (1hp-5.5hp),5.5kw-7.5kw (7.5hp-10hp) |
Capacitor: | N/M |
Protection Offered: | Over load protection Pump stalled protection Dry run protection with sensor free Under voltage protection Over voltage protection Open phase protection |
Application & Control characteristic | Control and protect universal pump Using water level sensor or float switch to control pump start and stop Applied for water supply by liquid level control through float switch or liquid probe Applied for water supply by pressure control through pressure switch and pressure tank Applied for drainage by liquid level control through float switch or liquid probe |

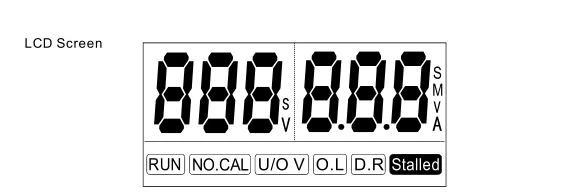

Other features | Push button calibration Memory function when power off & recovery Interactive LCD Screen
|
Working temperature Working humidity Degree of protection Install position Unit dimension (L x W x H) | -25℃-- +55℃ 20%--90%RH, no drips concreted IP22 Wall mounting 1 70× 1 55× 8.5mm |
