Easy Installation Simplex Pump 3 Phase Pump Controller
| Product Details: Place of Origin:China BrandName:Leading Certification:CE / ISO Model Number:L931 Payment & Shipping Terms: Minimum Order Quantity:1 set Price:Negotiable Packaging Details:Paper carton Delivery Time:25 days upon order confirmed Payment Terms:L/C, T/T, Western Union , Paypal Supply Ability:2000 pcs per Month |
Detailed Product Description
Pump Type: | Water Pump | Color: | White |
Phase: | Three Phase | Frequency: | 50HZ |
Working Voltage: | 380V-415V | Start Type: | DOL |
Universal Pump Control Panel , Control Under both Auto and Manual State
Technic Parameter And Function :
General detail: | |
Model | L931 |
Start type | Direct on line |
Qty of controlled pump | Single pump |
Rated input voltage: | AC380V Three phase 50HZ/ 60HZ |
Rated output power: | 0. 75kw-4kw (1 hp-5. 5hp) 15kw (20hp) |
Protection function | Over load protection Pump stalled protection Dry run protection Under voltage protection Over voltage protection Repeat start protection Phase unbalance protection Phase reversal protection Open phase protection |
Application & Control characteristic | Control and protect universal pump Using water level sensor ,float switch or pressure switch to control pump start and stop Applied for water supply by liquid level control through float switch or liquid probe Applied for water supply by pressure control through pressure switch and pressure tank Applied for drainage by liquid level control through float switch or liquid probe |
Other features | Pump last five faults record displaying Pump accumulative running time displaying Pump shaft anti-rust Presenting one dry contact point (BA port) Present RS485 port Present user remote monitor LCD screen locked function under Auto state |
Working temperature Working humidity Degree of protection Install position Unit dimension (L x W x H) | -25℃-- +55℃ 20%--90%RH, no drips concreted IP54 Wall mounting 250×197×114mm |
Company Information
Brief Introduction:
As the manufacturer of intelligent pump controller and pump motor starter products ,we have selling experiences in this field for more than 10 years ,our main market including Southest Asia ,Africa ,South America and our products sells very well both in domestic and overseas market due to it’s novelty design and good performance .
Typical Usage Scenarios Include:
Houses
Flats
Holidays houses
Farms
Water supply from wells
Irrigations of greenhouses, gardens, agriculture
Rain water reuse
Industrial plants
Waste water tank / Sewage sink

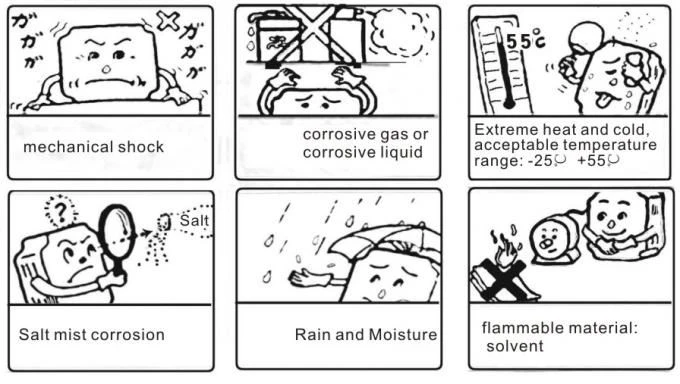

Main Installation Data:
Working temperature: -25 -- +25 centigrade
Working humidity :20% -- 90% RH, no drips concreted
Install position :Wall mounting
Degree of protection :IP54
Leading Science & Technology offers a wide range of pump control panel & pump control accessories for the pump control and protection market.
Our products: Intelligent Pump Controller, Sewage Pump Controller, Booster Pump Controller, Deep Well Pump Control Box, Submersible Pump Controller, Pump Motor Starter,Programmable Logic Controller, IOT Pump Controller, Reverse Osmosis Controller.
