Single Phase Pump Control Panel With CE Certificate For Pump Dealers
| Product Details: PlaceofOrigin:CHINA Brand Name:Leading orneutral Certification:CE / ISO Model Number:MP-S1 plus Payment & Shipping Terms: MinimumOrderQuantity:10 PackagingDetails:carton Payment Terms:L/C, T/T, Western Union,Paypal Supply Ability:2000pcs per month |
Detailed Product Description
Working Temperature: | -25℃-- +55℃ | Working Humidity: | 20%--90%RH, No Drips Concreted |
Degree Of Protection: | IP54 | Install Position: | Wall Mounting |
Shipping Carton Dimension: | 34*36*53cm | Unit Dimension (L X W X H): | 170*155*85mm |
Description:

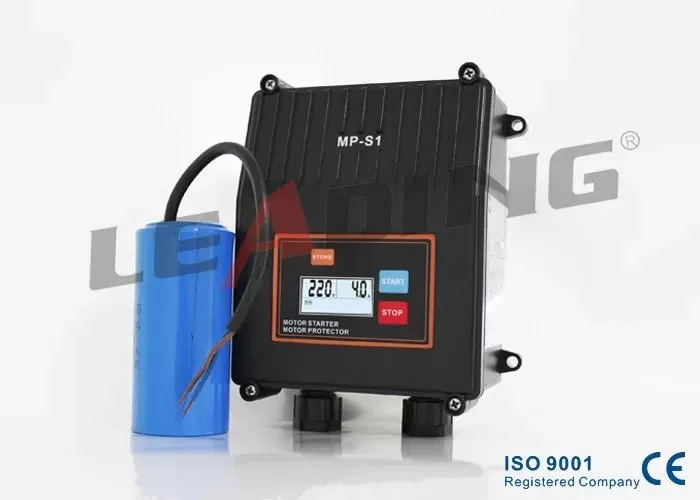

Single Phase Pump Control Panel (MP-S1 plus) With CE Certificate For Pump Dealers
MP-S1 plus,it's an Single Pump Control Panel.If don't connect the level probe,it's same as an motor protector/Starter.It has More control functions,but motor protector just start & protect pump.
Applications:
Control and protect universal pump

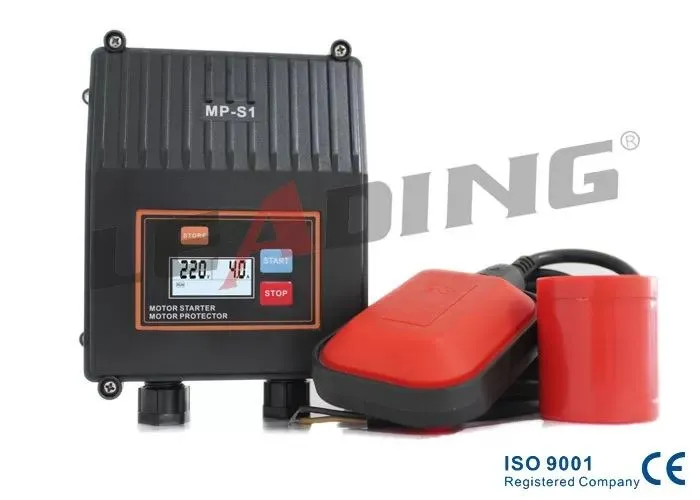

Using liquid probe sensor or float switch or pressure switch to control pump start and stop.
Applied for water supply by liquid level control through float switch or liquid probe.
Applied for water supply by pressure control through pressure switch and pressure tank.
Applied for drainage by liquid level control through float switch or liquid probe.
Specifications:
Model | MP-S1 plus |
Description | Single Pump Control Panel |
Input Voltage | AC220-240V,Single Phase,50HZ/60HZ,DOL |
Output Power | 0.37-2.2KW(0.5-3HP) |
Capacitor | Reserved space for installing start capacitor |
Degree of protection | IP54 |
Protection Function | Over load protection |
| Over/Under voltage protection | |
| Pump stalled protection | |
| Dry run protection with sensor free | |
Other features | Memory function when power off & recovery |
| LCD screen displaying motor running stats | |
| Push button calibration | |
Main installation data | Working temperature:-25ºC-- +55ºC |
| Working humidity:20%--90%RH, no drips concreted | |
| Install position:Wall mounting | |
Unit dimension(L*W*H) | 170*155*85mm |
Controller Components:
A:Main terminals for electrical connection tothe power supply and electrical pump motor
B:Control terminals for electrical connectionto the float switch/pressure switch
The picture is for reference only. Please refer to the object.
NOTE:Start Capacitor not included - optional
Other Products And Pictures:
1.Motor protector/motor starter
2.Single pump control panel
(universal/ pressure boosting/sewage / drainage pump)
3.Duplex pump control panel
(universal/ pressure boosting/sewage / drainage pump)
4.Reverse osmosis control panel
5.Super programmable logic controller
6.Accessories
7.Wifi+app control---coming soon
8.ODM/OEM PUMP CONTROLLER
