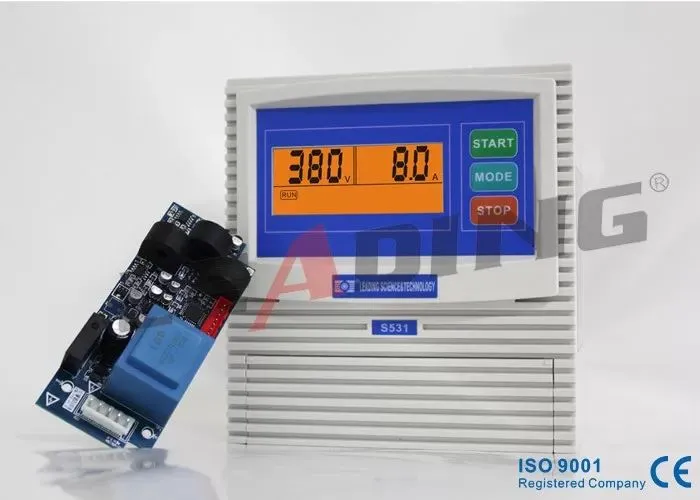

Digital Water Pump Control Box Cell Phone Based Remote Controller
| Product Details: Place of Origin:China BrandName:LEADING Certification:CE Model Number:S531 Payment & Shipping Terms: MinimumOrderQuantity:1 set Price:negotiable Packaging Details:paper carton Delivery Time:30 days upon order confirmed Payment Terms:L/C, T/T, Western Union Supply Ability:2000pcs per month |
Detailed Product Description
Input Voltage: | AC380V | Phase: | Three Phase |
Start Type: | DOL Start | Protection Grade: | IP22 |
Carton Dimension: | 34*36*53cm | PCS / CTN: | 14PCS |
Three Phase Input Voltage 380V Intelligent Pump Controller , Output Power Range 0.75-7.5KW
Brief Introduction :
SINGLE PUMP CONTROL PANEL
MODEL: S531
Model | S531 |
Start type | Direct on line |
Qty of controlled pump | Single pump |
Rated input voltage: | AC380V Three phase 50HZ/ 60HZ |
Rated output power: | 0. 75kw-4kw (1 hp-5. 5hp) |
Product function | Over load protection Pump stalled protection Dry run protection Under voltage protection Over voltage protection Open phase protection |
Application & Control characteristic | Control and protect universal pump Using water level sensor or float switch to control pump start and stop Applied for water supply by liquid level control through float switch or liquid probe Applied for water supply by pressure control through pressure switch and pressure tank Applied for drainage by liquid level control through float switch or liquid probe |
Other features | Push button calibration Memory function when power off & recovery |
Working temperature Working humidity Degree of protection Install position Unit dimension (L x W x H) | -25℃-- +55℃ 20%--90%RH, no drips concreted IP22 Wall mounting 170× 155× 85mm |
