Pressure Control Single Phase Pump Control Panel With Manual Auto Control Method
| Product Details: Place of Origin:China BrandName:LEADINGor Neutral orCustomization Certification:CE,ISO Model Number:S521 Payment & Shipping Terms: MinimumOrderQuantity:10 PackagingDetails:Carton Delivery Time:8-10 working days Payment Terms:L/C, T/T, Western Union Supply Ability:60, 000 Sets Per Month Contact Now Chat Now |
Large Image : Pressure Control Single Phase Pump Control Panel With Manual / Auto Control MethodDetailed Product Description
Size: | Small | Packing: | Carton |
Brand: | LEADING Or Neutral Or Customization | Country Of Origin: | China |
Input Voltage: | AC220V/50HZ | Phase: | Single Phase |
Rated Output Power: | 0.37kw-2.2kw | Protection Grade: | IP22 |
About Product
Description
India Market Single Phase Pump Control Box With Power 0.37-2.2KW S521

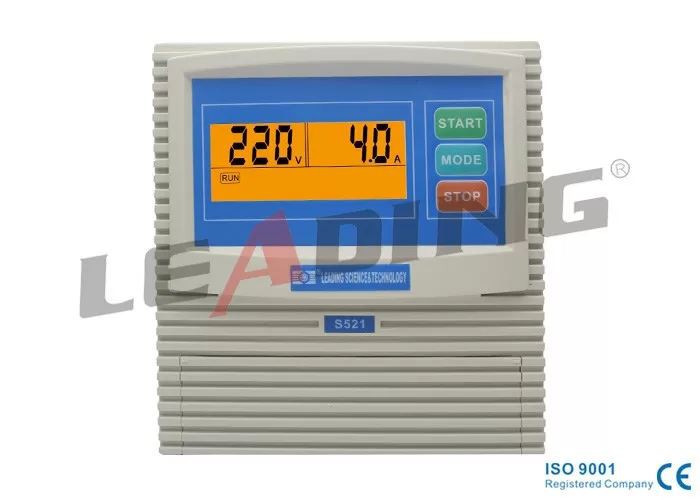

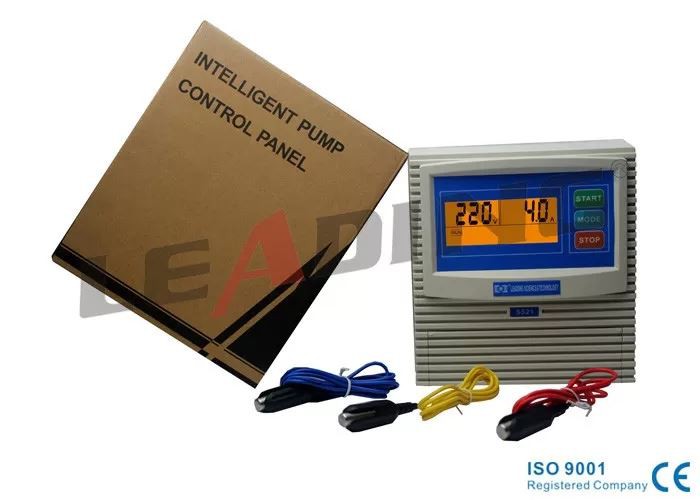

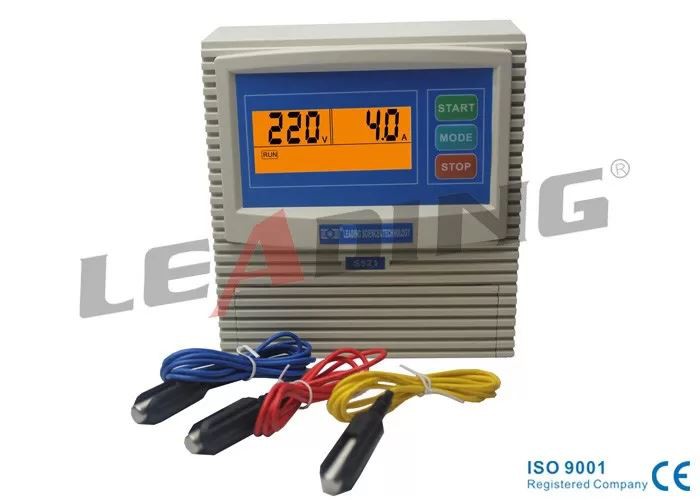

Intelligent Pump Controller model S521 is an easy to use, programmable controlling & protection device for direct start, single phase deep well, submersible pump, centrifugal pump, pipeline pump etc with output power from 0.37KW to 2.2KW (0.5HP-3HP).
Model S521 has many operation modes by adopting different electric installations. An important feature that makes the difference between Model S521 and common On/Off pump control box is the probe / sensor free in the well. Our special design makes it a very reliable and sensitive protection against pump dry run without installing probe / sensor in the well.
Control characteristic | Double liquid level control |
Control method | Manual/Auto |
Liquid level control characteristic | Float switch |
Pressure control characteristic | Pressure switch(n/c) & pressure tank |
Rated output power | 0.37KW-2.2KW (0.5HP-3HP) |
Rated input voltage | AC220V-240V 50HZ/60HZ SinglePhase |
Trip response time of overload | 5sec-5min |
Trip response time of short circuit | <0.1sec |
Trip response time of under/over voltage | <5sec |
Trip response time of dry run | 6sec |
Recovery time of over load | 30min |
Recovery time of under/over voltage | 5min |
Recovery time of dry run | 30min |
Trip voltage of over voltage | 253V |
Trip voltage of under voltage | 175V |
Protection function | Over load protection |
Working temperature | -25ºC--+55ºC |
Working humidity | 20%-90%RH, no drips concreted |
Degree of protection | IP22 |
Install position | Vertical |
Unitdimensions(LxWxH) | 170×155×85mm |
